Jinhua UPVC Plastic Steel Tile Manufacturer

Thickness:0.8mm,1.0mm,1.3mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm

Width:1120mm Length:variable length

Color:Blue,Green,White

UPVC plastic steel tiles are made from polyethylene resin UPVC as the raw material,supplemented with UV anti ultraviolet agents and other chemical materials.Through scientific proportioning and advanced process technology,the city's Yasheng UPVC anti-corrosion board is used as the whole material,with consistent color,good fire resistance,anti-corrosion and weather resistance,no asbestos content,bright color,environmental protection and health.

1.Requirements for UPVC plastic steel tile roof structure:The layer frame structure uses steel or wood as purlins,and the rows of purlins should be flat and not deformed.The two purlins should be parallel to each other and have a uniform span.

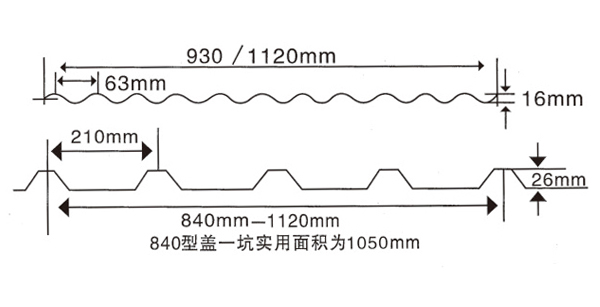

When installing and overlapping UPVC plastic steel tiles,trapezoidal tiles should be overlapped horizontally with one wave,and small circular tiles should be overlapped with two waves.When the span exceeds 24 meters,it is recommended to overlap three waves with small circular tiles,and the recommended longitudinal overlap length is 200mm.Please determine the overlap layer ash according to the direction of water flow and wind inside to avoid water leakage caused by installation.

3.Requirements for the span of UPVC plastic steel tile purlins:

I PVC tile thickness;

1.0mm surface tile,construction strip span≤700mm

Roof tiles with a thickness of 1.2mm-2.0mm.Suggest that the span of the row bar be≤800mm

For roof roofs with a thickness of 20mm or more,it is recommended that the span of the rows be≤900mm

121FRP daylighting tile recommended row span:

1.0mm-1.2mm thick,with a construction strip span of≤1000mm

1.3-1.5mm thick.It is recommended to have a strip span of≤1200mm

The thickness is above 1.5mm,and the span of the construction strip is≤1300mm.

If UPVC plastic steel tiles are fixed with self powered screws,it is necessary to drill holes in advance.The diameter of the Xia Bi screw is 1-2mm larger It is recommended to use PVC specialized tile structures for fixing PVC star tiles,with a minimum of 6 fasteners per square meter.Waterproof caps can be installed above the fasteners.Roof tiles should be laid around the perimeter of the frame.Please add appropriate fasteners and ensure that the part of the roof tile protruding from the eaves is within 100mm.

5.The overlap between UPVC plastic steel tiles and roof tiles should consider the influence of slope and dominant wind throughout the year.The arrangement sequence and laying of roof tiles should be opposite to the local dominant wind direction throughout the year,that is,the exposed outer interface of the tiles should be facing away from the dominant wind direction.

6.All fixing components of UPVC plastic steel tiles need to be installed at the top of the wave,and ensure that the fixing components are flush with the tile surface.The fixing components cannot be tightened too tightly to avoid deformation of the roof tiles and water leakage.

7.The installation of UPVC plastic steel tiles is a systematic project that requires careful and meticulous construction according to requirements to ensure the product's service life to a certain extent.
